ESP8285 ESP-01M IR Control Module Development Board for Arduino

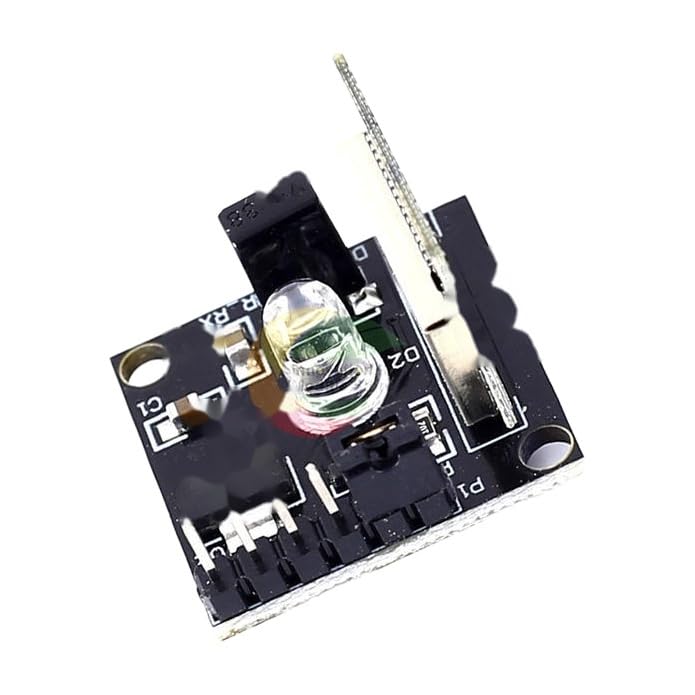

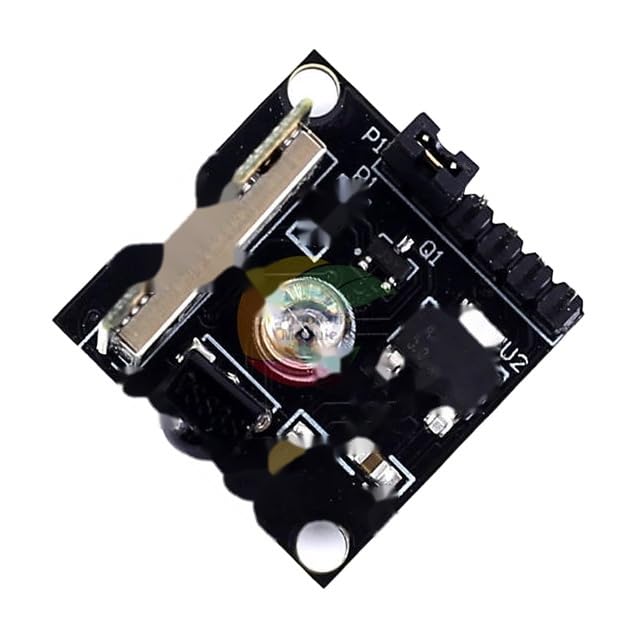

ESP8285 ESP-01M IR Control Module Development Board for ArduinoDescriptions:The ESP infrared transmitting and receiving module uses the ESP-01M module with ESP8285 as the core as the main control, and the program is the same as ESP8266. The module has an infrared tube and an infrared tube which are controlled by io14 and io4 respectively, and a programming port is reserved. Feature: Infrared related codes, infrared library, and programming environment construction process instructions, programming language for Arduino, demonstration program can read and transmit infrared key values and codes. With it, you can record the infrared control at home, if you connect to the Internet of Things platform, you can remotely control it. Provides a programming port (communicable and power supply), which can be connected to a TTL downloader. Size: 23.4*23.4mm Connect with TTL downloader: GND-GND 5V-5V RX-TX TX-RX When programming the program, IO0 and GND must be short-circuited, and the module needs to be re-powered; after programming, disconnect IO0 and GND and power-on again to run the program normally. Precautions: When supplying power, you need to look for 5V and GND. There is no reverse connection protection for the circuit, and the chip may be burned out if connected incorrectly. Package Included:1 * ESP8285 ESP-01M IR Transceiver Module Development Board for Arduino
